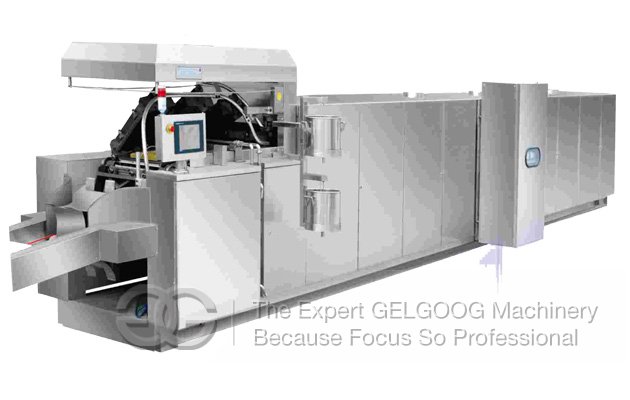

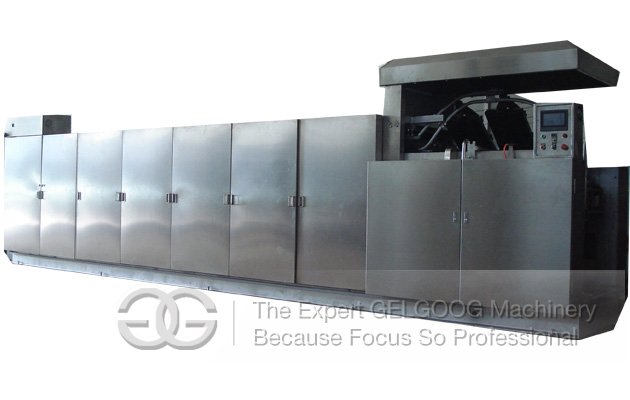

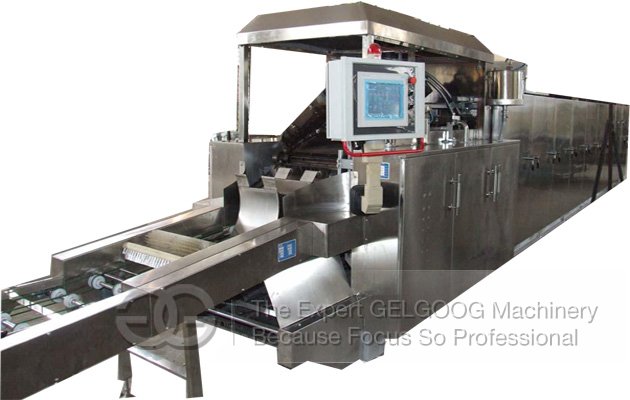

Fully-Automatic Electric Type Wafer Baking Oven GG-63
  • Fully-Automatic Electric Type Wafer Baking Oven GG-63
  • Fully-Automatic Electric Type Wafer Baking Oven GG-63
  • Fully-Automatic Electric Type Wafer Baking Oven GG-63

Fully-Automatic Electric Type Wafer Baking Oven GG-63

  • MOQ:1
  • Brand:GELGOOG MACHINERY
  • Certification: CE
  • Supply Ability: 100
  • PAY METHOD: WEST UNION L/C T/T CASH
  • Warranty Time: 6 Months
  • LOADING PORT: Qingdao port
  • Country Of Origin: China

Application

This machine is used for baking wafer sheet.

Main Feature

It is automatic model. We can customize it into different capacity.

Features

The wafer baking system uses LPG for heating of the baking plates. It is controlled by a PLC made by SIEMENS brand. The functions of the baking oven are fully automatic from spreading batter on the plates to the procedure of baked wafer sheets coming out of the oven. Baking is even and produces good quality wafer sheets for next procedure. In PLC there is a PID controller which is used to control the temperature of the baking plates automatically.This is very important equipment in the wafer production line. The collection of required signal of PID is supplied by infrared sensor which is produced by RAYTEK of U.S.A .The oven status display and the data reset are supplied by SIEMENS by Japan. Contactor switch is supplied by SCHENEIDER Company in China. The stepping wheel bearings of the mould rack are SKF Explorer made in France. The pressing roller bearings are SKF Explorer made in Austria. The pneumatic components are supplied by FESTO/SMC. The main drive will be SEW Eurodrive of German brand. There is an automatic spurring-cleaned device at the bottom of the baking oven. There is second pressure relief valve from Madas. The floating system is new type. The pressing system, opening system and tension system are improved about the heat-treatment. The main bolts are screws are 8.8 or 12.6 grade. There is a safety cover for batter inductive switch.
Technical Data

Model GGDL-63-1
Heat Source Electric
Moulds Quantity 63 pairs
Moulds Type Cast Iron Electric Plates
Plates Size 470*325*25mm
Size of Wafer Stripe 3.0*3.0*0.5
Wafer Size 2.0-3.0mm
Baking Time 90~120 seconds(the thickness of wafer<3mm, temperature is 180℃)
Capacity 2520pieces/h(the thickness of wafer:2.3mm)
SUS 304 Material Parts Oven door, hood, pulp barrels, shell
SUS 304 Material Thickness 1.0mm(±0.05mm)
Food Contacting Parts Material SUS 304 or Cast Iron
Touch Screen 10 inches, E-view
Mould Base Cast Iron
Oven Frame High Quality Carbon Steel, Silver paint spraying antirust
Walking Wheel Bearing HRB
Door Insulation Materials Aluminum silicate, rock wool
Slurry System Frequency conversion slurry system
Slurry Motor 0.75kw, SEW
Leaching pulp, the host drive inverter Tai Da Brand
Circuit breaker, ac contactor, button Chint, Shuangke
Main Motor 1.5kw, Jin Fuling
Motor Reducer Xidi transmission
Max operating current 420A/350V AC
Max power consumption About 230KW
Electric 380V, 50Hz, 3 phases
Dimension 12380*1560*2320mm
Weight 11500KG

FAQ

1.Q:Have you exported to our country?
  A:We have wide market all around the world,such as Africa,America,and Asia.All the reputation depends on the quality!  Give us a chance ,we can feed back a satisfaction!
2.Q:How can we arrange the shipping?
  A:We cooperated with some reliable shipping companies for several years,we can be responsible for the shipping to your   country.If you have shipping forwarders in china,we can also cooperate with them!
3.Q:What's the MOQ(Minimum Order Quantity)?
  A:We are specialized in wholesales of food machinery, so the agent in overseas will be highly appreciated !The best   quality with best price,to achieve the win-win cooperation!
4.Q:Can I visit your company?
  A:We have exhibition hall in Zhengzhou city,welcome to visit us to examine the quality and negotiate our business!
5.Q:What payment method do you accept?
  A:We accept payment by T/T or Western Union generally, and also can accept L/C.
