Factory Price Wafer Ice Cream Cone Making Machine Suppliers
  • Factory Price Wafer Ice Cream Cone Making Machine Suppliers
  • Factory Price Wafer Ice Cream Cone Making Machine Suppliers
  • Factory Price Wafer Ice Cream Cone Making Machine Suppliers

Factory Price Wafer Ice Cream Cone Making Machine Suppliers

  • MOQ:1
  • Brand:GELGOOG MACHINERY
  • Certification: CE
  • Supply Ability: 100
  • PAY METHOD: WEST UNION L/C T/T CASH
  • Warranty Time: 6 Months
  • LOADING PORT: Qingdao port
  • Country Of Origin: China

Application

This wafer ice cream cone making machine is applied to making ice cream cones.

Main Feature

Composed by upper and lower molds.

Features

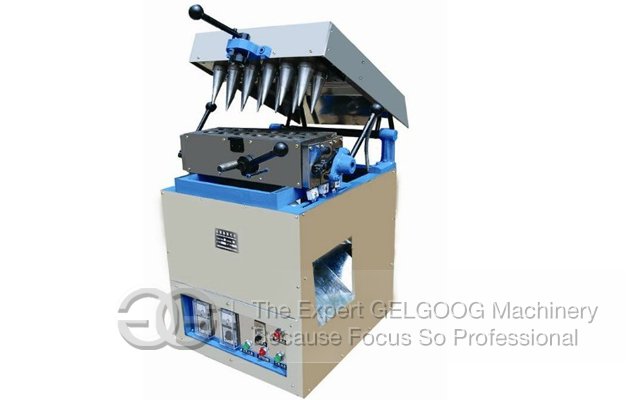

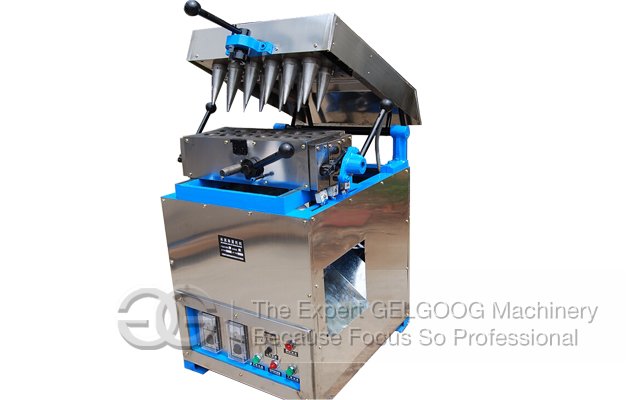

Introduction of Wafer Ice Cream Cone Making Machine
The machine is a professional equipment to produce ice cream cone with different capacities. This is a semi-automatic ice cream cone making machine, it has 12 moulds that can make 12 pieces wafer cones per time.This series wafer ice cream cone making machines has many models, for example 2, 4, 12, 24, 32, 40, 60, 120, etc. Each model has a different capacity, and the machine has a factory price.
wafer ice cream cone making machine
Frame of Wafer Cone Making Machine
Department with profiles welded frame. There are panel, carrying molds and operating machianism on the top; there is the electrical box down. Surrounding covered with steel plates, there is the slide to facilitate the cone slipped out.

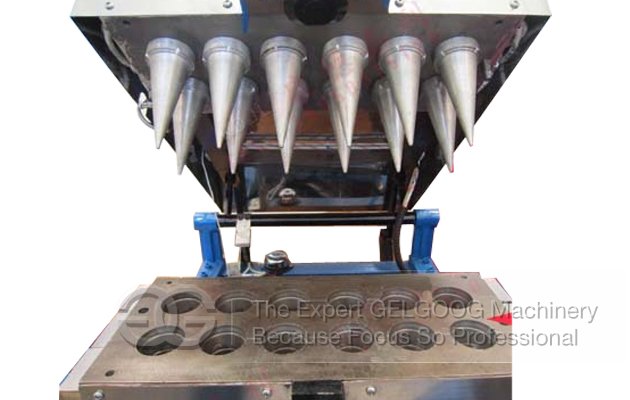

Mould of Wafer Ice Cream Cone Machine
Composed by upper and lower molds. Installed the corn head on the upper corresponding to the upper level is set on the panel. Divided into two lower mold by midline. The front one is fixed mold, fastened to the panel by means of screws, determining the position of the mold; another one is the dynamic simulation, can able to manipulate its traverse, closed the upper and lower molds, the core and the die orifice to form a particular cavity, if implant the flout pulp, it will be press into the cone. Open the upper mold, separate the lower mold, the cone will be slip out from the slide.

Electrical Equipment
Actuator in the mold, control elements are concentrated in the electrical box installed. Installed two units temp of the upper and lower molds, more than that, it can keep the set temp automatically. Turn button right, heater is energized, the arrows on the heating. When the mold reaches the set temperature, the lamp is off, then can baked the cone.

As a wafer cone making machine manufacturer, every day we make a variety of ice cream cone equipment, to provide these equipment to a lot of ice cream manufacturers, cone manufacturers, casual food manufacturers and so on. If you also need an ice cream cone making machine, you can send us the picture, size and output of the cone you want to make, and according to these requirements, we recommend the right machine for you and make a detailed price list for you.
Technical Data
Model GG-12
Production Capacity 300-350pcs/h
Rated Output 7KW
Net Weight 180kgs
Main Power 220V/50HZ
Overall Dimension(mm) 1000*600*1200

FAQ

1.Q:Can I visit your company?
A:We have exhibition hall in Zhengzhou city,welcome to visit us to examine the quality and negotiate our business!
2.Q:What's the MOQ(Minimum Order Quantity)?
A:We are specialized in wholesales of Packing machinery, so the agent in overseas will be highly appreciated !The best quality with best price,to achieve the win-win cooperation!
3.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhengzhou,Henan Province, China,You can fly to Xinzheng Airport directly. We will pick you up on Xinzheng International airport.
4.Q:Can I get a best price?
A:Quality is the heart of one company.We can not promise the lowest price,but we promise the best quality and most reasonable price.On the other hand,bigger order you placed,cheaper price you will get!
5.Q:How can we arrange the shipping?
A:We cooperated with some reliable shipping companies for several years,we can be responsible for the shipping to your country.If you have shipping forwarders in china,we can also cooperate with them!
